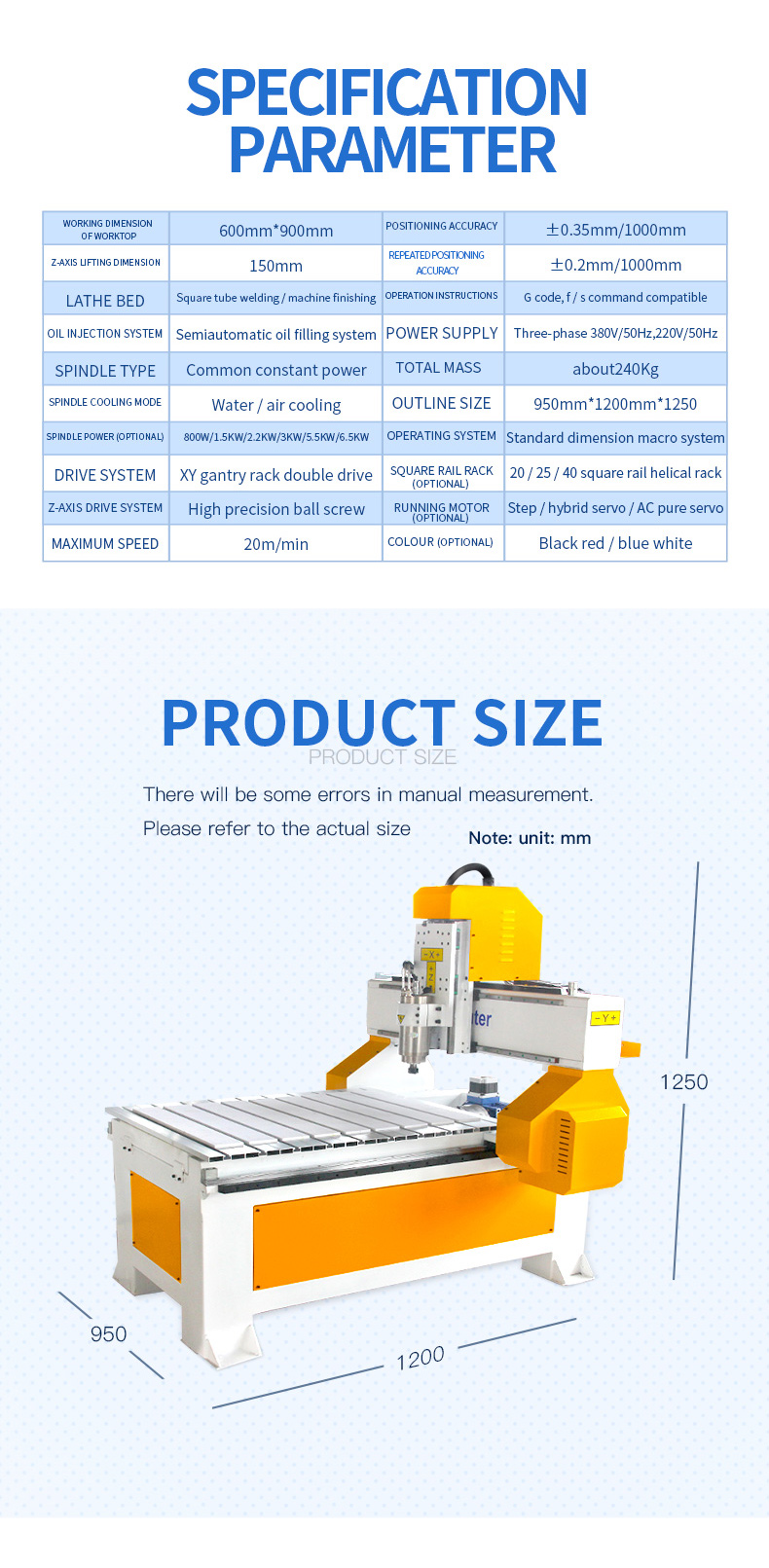

Working dimension of workshop: 600 x 900 mm
Z-axis lifting dimension: 150 mm
Lathe bed: Square tube welding/machine finishing
Oil injection system: Semiautomatic oil filling system
Spindle type: Common constant power
Spindle cooling mode: water/air cooling
Spindle power (optional): 800w/1.5kw/2.2kw/3kw/5.5kw/6.5kw
Drive system: XY gantry rack double drive
Z-axis drive system: High precision ball screw
Max. speed: 20 m/min
Position accuracy: 0.35mm/1000mm
Repeated position accuracy: 0.2mm/1000mm
Operation instructions: G code, f/s command compatible
Power supply: Three-phase 380V/50Hz, 220V/50Hz
Total mass: About 240 kgs
Outline size: 950 x 1200 x 1250 mm
Operating system: Standard dimension macro system
Square rail rack (optional): 20/25/40 square rail helical rack
Running motor (optional): Step/hybrid servo/AC pure servo
Colour (optional): black red/blue white.
