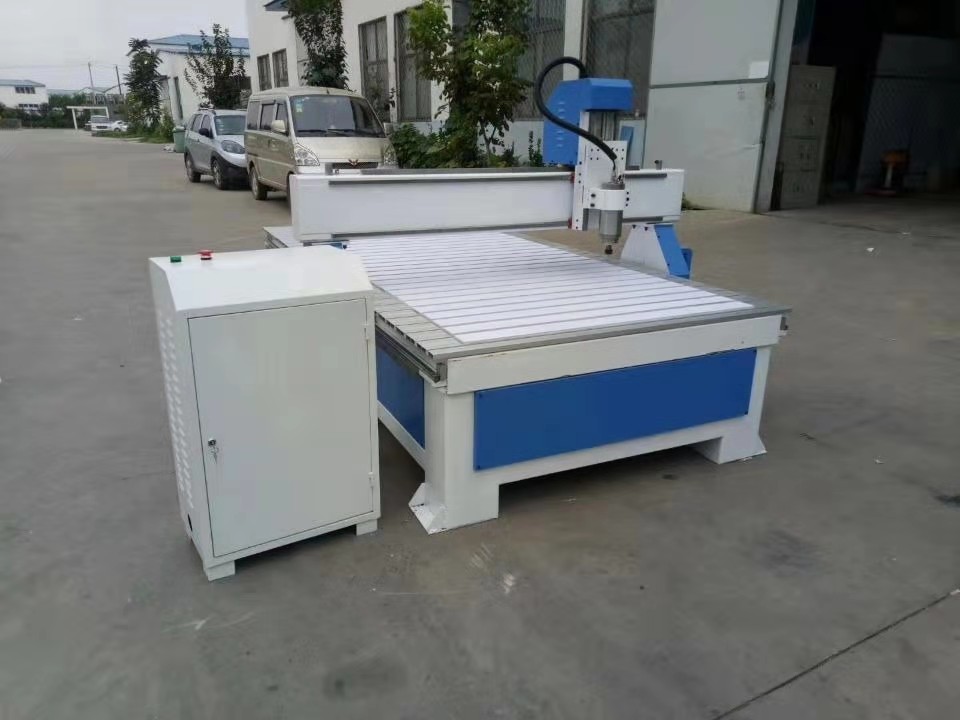

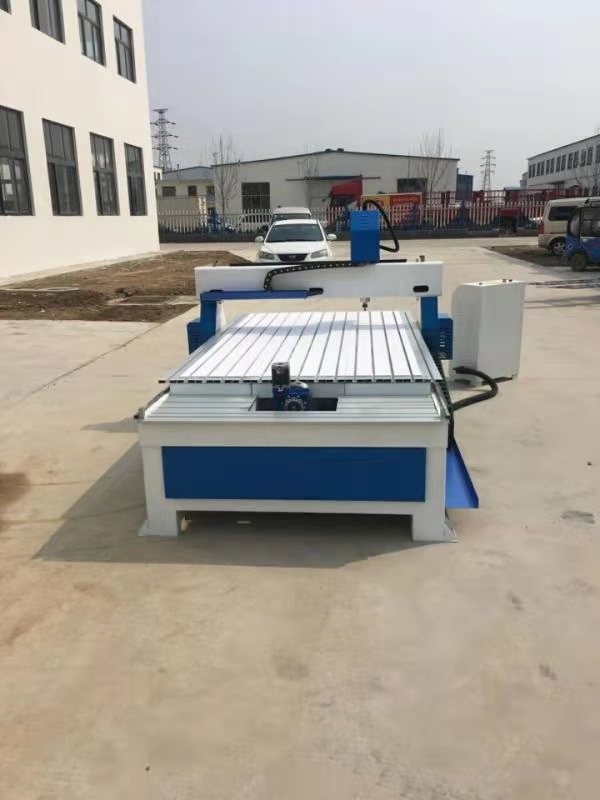

1325 Carving machine

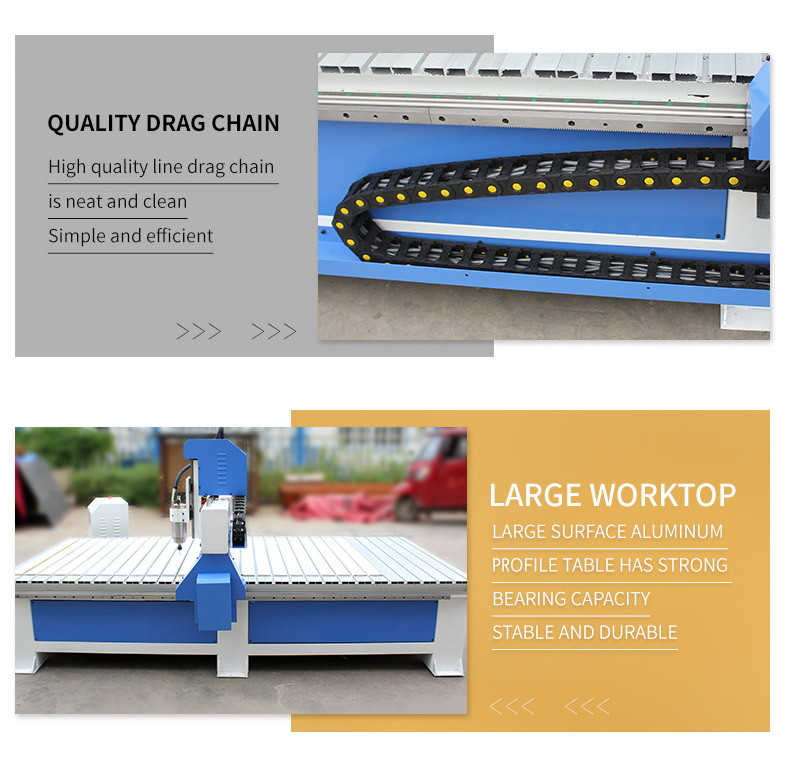

Dimension of worktable: 1300 x 2500 mm
Z-axis lifting dimension: 200 mm

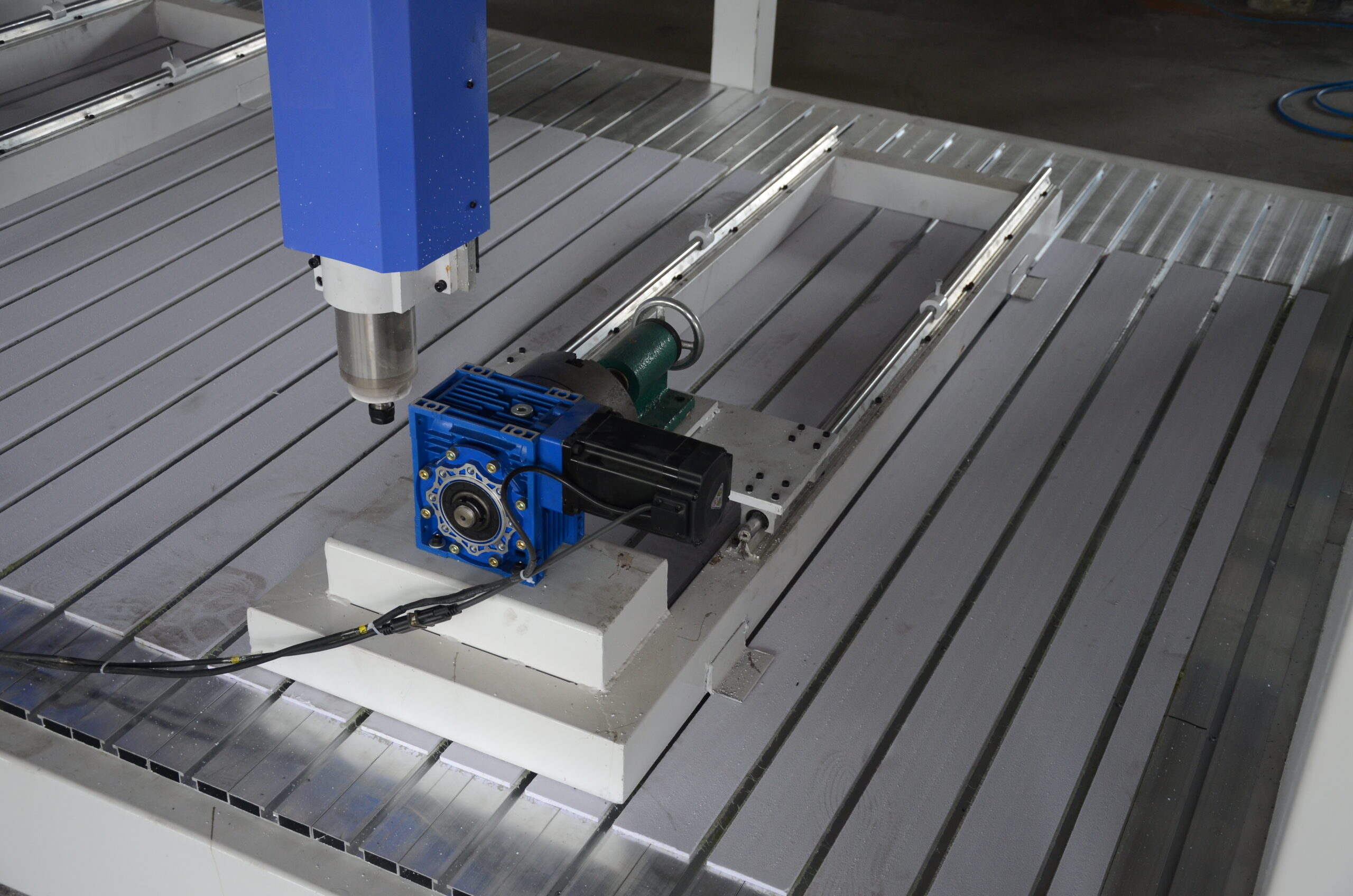

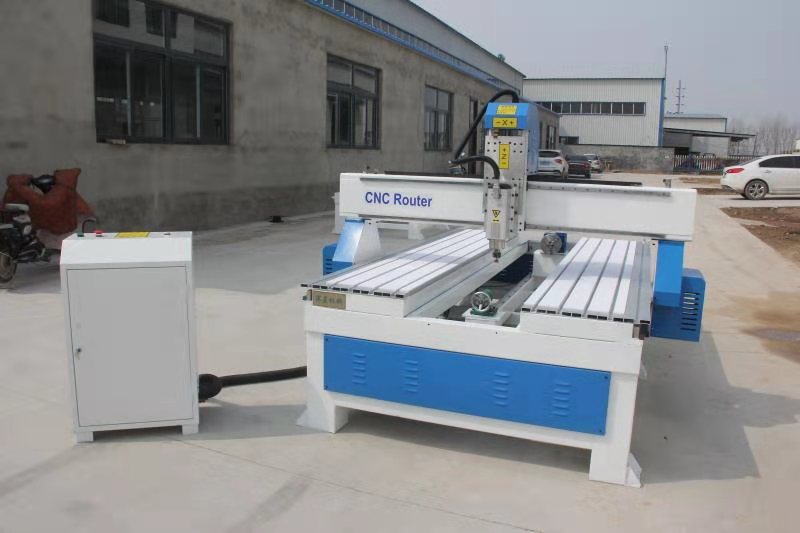

Cylinder carving (optional): 0-2000 mm , 10-50 mm

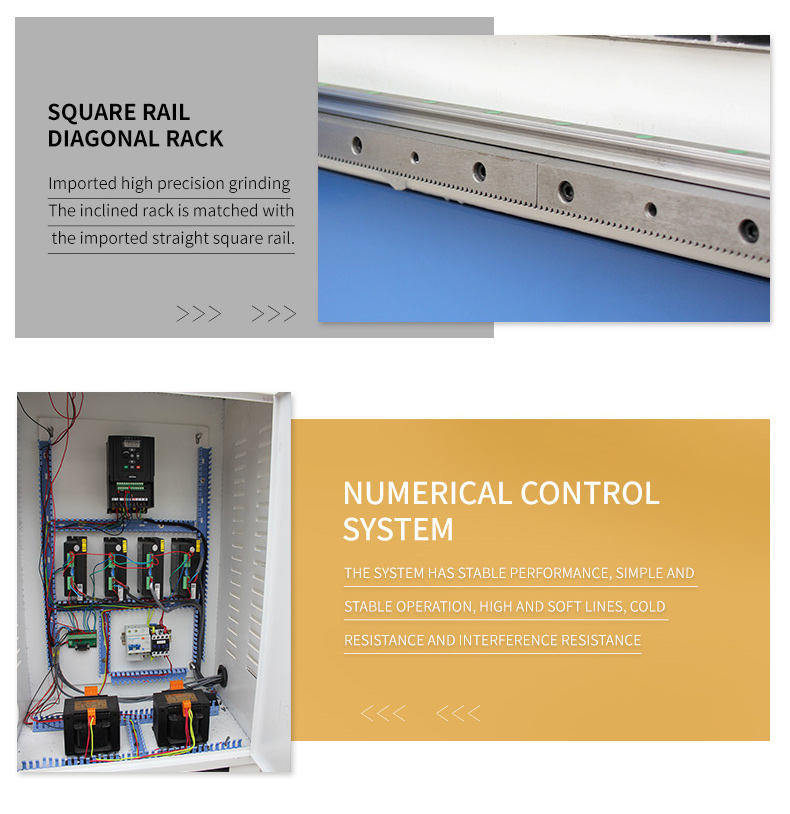

Drive system: XY gantry rack double drive
Z-axis drive system: High precision roller screw
Max. speed: 20 m/min
Positioning accuracy: 0.05mm
Operation instructions: G code, f/s command compatible
Power supply: three-phase 380V/50Hz,200V/50Hz

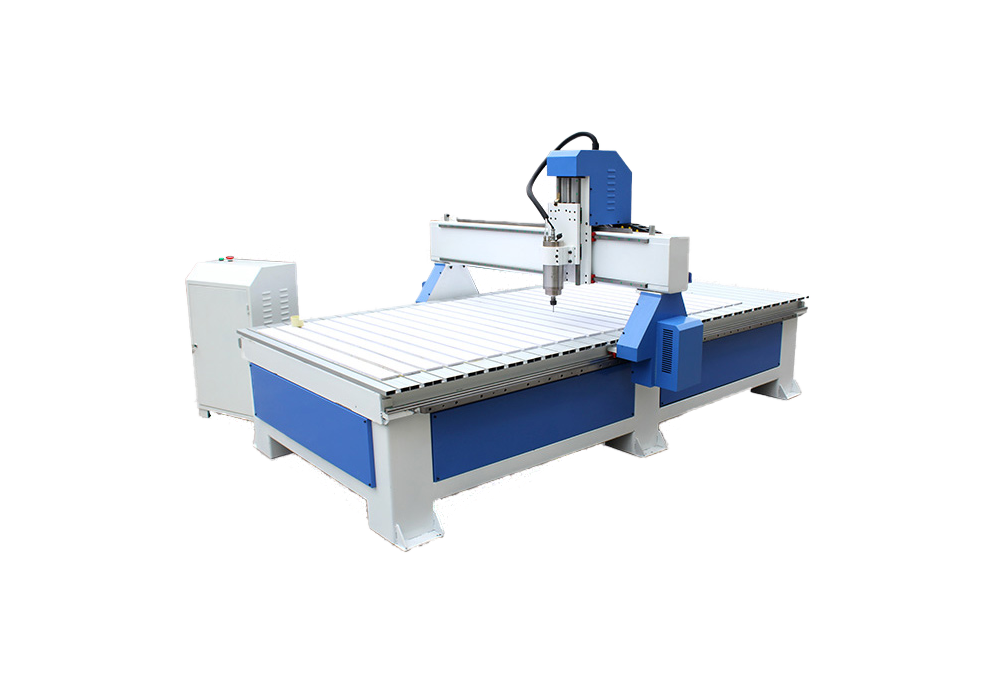

Size: 3000 x 1900 x 1600 mm
Operating system: Standard dimension macro system
Spindle power (optional): 800w/1.5kw/2.2kw/3kw/5.5kw/6.5kw
Running motor: Stepping, hybrid servo, AC pure servo.
Applicable materials: mainly applicable to all kinds of wood, acrylic, PVC, density board, EVA, Chevron board, organic glass, transparent marble, aluminium plastic board, etc.
